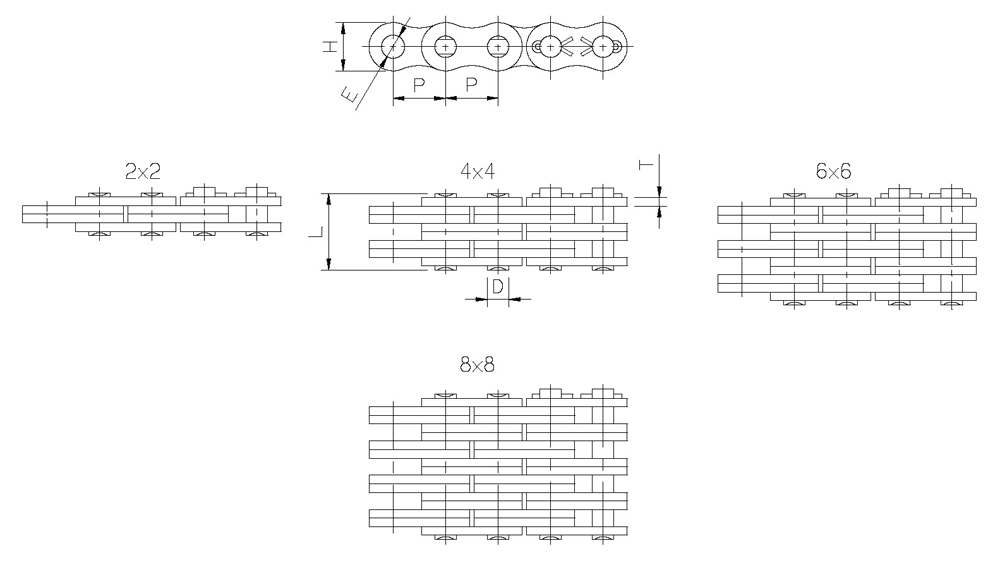

CHAIN NO. |
ISO/DIN |
Lacing |
Pitch |
Plate |
Pin |
Ultimate Strength kgf (ave.) |
Approx Weight kg/m |
||||
|
P |
Height |
Hole |
Thickness |
Dia |
Length |
||||||
|
inch |
mm |
H(max) |
E(min) |
T |
D(max) |
L(max) |
|||||
|
EL422 EL444 EL466 EL488 |
LL0822 LL0844 LL0866 LL0888 |
2x2 4x4 6x6 8x8 |
1/2” |
12.70 |
10.92 |
4.46 |
1.50 |
4.45 |
8.5 14.6 20.7 26.8 |
2000 4000 6000 8000 |
0.36 0.69 1.05 1.41 |
|
EL522 EL544 EL566 EL588 |
LL1022 LL1044 LL1066 LL1088 |
2x2 4x4 6x6 8x8 |
5/8” |
15.875 |
13.72 |
5.09 |
1.65 |
5.08 |
9.3 16.1 22.9 29.7 |
2600 5200 7800 10400 |
0.50 1.00 1.48 1.95 |
|
EL622 EL644 EL666 EL688 |
LL1222 LL1244 LL1266 LL1288 |
2x2 4x4 6x6 8x8 |
3/4” |
19.05 |
16.13 |
5.73 |
1.80 |
5.72 |
10.7 18.5 26.3 34.1 |
4000 8000 12000 16000 |
0.74 1.45 2.16 2.91 |
|
EL822 EL844 EL866 EL888 |
LL1622 LL1644 LL1666 LL1688 |
2x2 4x4 6x6 8x8 |
1” |
25.40 |
21.08 |
8.30 |
3.15 |
8.28 |
17.2 30.2 43.2 56.2 |
8000 16000 24000 32000 |
1.57 3.09 4.60 6.13 |
|
EL1022 EL1044 EL1066 EL1088 |
LL2022 LL2044 LL2066 LL2088 |
2x2 4x4 6x6 8x8 |
1-1/4” |
31.75 |
26.42 |
10.21 |
3.50 |
10.19 |
20.1 35.1 50.1 65.1 |
12000 24000 36000 48000 |
2.01 3.93 5.86 8.20 |
|
EL1222 EL1244 EL1266 EL1288 |
LL2422 LL2444 LL2466 LL2488 |
2x2 4x4 6x6 8x8 |
1-1/2” |
38.10 |
33.4 |
14.65 |
5.20 |
14.63 |
28.4 49.4 70.4 91.4 |
19000 38000 57000 76000 |
4.18 8.48 12.2 16.0 |
|
EL1422 EL1444 EL1466 EL1488 |
LL2822 LL2844 LL2866 LL2888 |
2x2 4x4 6x6 8x8 |
1-3/4” |
44.45 |
37.08 |
15.92 |
6.40 |
15.90 |
34.0 60.0 86.0 112.0 |
25000 50000 75000 100000 |
5.20 10.10 14.90 19.80 |
|
EL1622 EL1644 EL1666 EL1688 |
LL3222 LL3244 LL3266 LL3288 |
2x2 4x4 6x6 8x8 |
2” |
50.80 |
42.29 |
17.83 |
6.40 |
17.81 |
35.0 61.0 87.0 113.0 |
30000 60000 90000 120000 |
7.02 12.71 18.91 25.08 |
|
EL1644(T6) EL1666(T6) EL1688(T6) |
LL3244(T6) LL3266(T6) LL3288(T6) |
4x4 6x6 8x8 |
2” |
50.80 |
42.29 |
17.83 |
6.00 |
17.81 |
56.15 81.15 108.15 |
60000 90000 120000 |
12.67 18.85 24.40 |
Any other enquiry than above spec. is welcomed.
