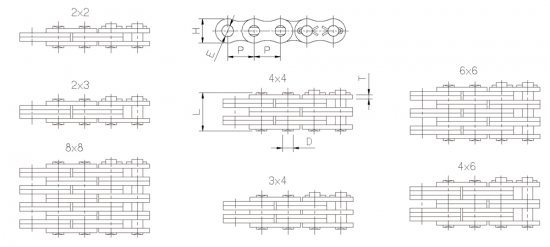

CHAIN NO. |
ISO/DIN |
Lacing |
Pitch |
Plate |
Pin |
Ultimate Strength kgf (ave.) |
Approx Weight kg/m |
||||
|
P |
Height |
Hole |
Thickness |
Dia |
Length |
||||||
|
inch |
mm |
H(max) |
E(min) |
T |
D(max) |
L(max) |
|||||
|
BL422 BL423 BL434 BL444 BL446 BL466 |
LH0822 LH0823 LH0834 LH0844 LH0846 LH0866 |
2x2 2x3 3x4 4x4 4x6 6x6 |
1/2” |
12.70 |
12.07 |
5.12 |
2.0 |
5.09 |
11.02 13.16 17.40 19.51 23.75 27.99 |
3000 3000 4500 6000 6000 9000 |
0.69 0.77 1.07 1.19 1.48 1.80 |
|
BL522 BL523 BL534 BL544 BL546 BL566 BL588 |
LH1022 LH1023 LH1034 LH1044 LH1046 LH1066 LH1088 |
2x2 2x3 3x4 4x4 4x6 6x6 8x8 |
5/8” |
15.875 |
15.09 |
5.98 |
2.4 |
5.96 |
12.88 15.37 20.32 22.78 27.74 32.69 42.60 |
4400 4400 6600 8800 8800 13200 17600 |
0.91 1.13 1.56 1.78 2.22 2.74 3.70 |
|
BL622 BL623 BL634 BL644 BL646 BL666 BL688 |
LH1222 LH1223 LH1234 LH1244 LH1246 LH1266 LH1288 |
2x2 2x3 3x4 4x4 4x6 6x6 8x8 |
3/4” |
19.05 |
18.11 |
7.96 |
3.2 |
7.94 |
17.37 20.73 27.43 30.78 37.49 44.20 57.61 |
7000 7000 10500 14000 14000 21000 28000 |
1.47 1.82 2.52 2.87 3.57 4.27 5.67 |
|
BL822 BL823 BL834 BL844 BL846 BL866 BL888 |
LH1622 LH1623 LH1634 LH1644 LH1646 LH1666 LH1688 |
2x2 2x3 3x4 4x4 4x6 6x6 8x8 |
1” |
25.40 |
24.13 |
9.56 |
4.0 |
9.54 |
21.34 25.48 33.76 37.90 46.18 54.46 71.03 |
11500 11500 17250 23000 23000 34500 46000 |
2.30 3.15 4.37 4.98 6.20 7.50 10.02 |
|
BL1022 BL1023 BL1034 BL1044 BL1046 BL1066 BL1088 |
LH2022 LH2023 LH2034 LH2044 LH2046 LH2066 LH2088 |
2x2 2x3 3x4 4x4 4x6 6x6 8x8 |
1-1/4” |
31.75 |
30.18 |
11.14 |
4.8 |
11.11 |
25.37 30.33 40.23 45.19 55.09 65.00 84.81 |
15500 15500 23250 31000 31000 46500 62000 |
2.49 3.85 5.84 7.20 8.24 10.63 14.06 |
|
BL1222 BL1223 BL1234 BL1244 BL1246 BL1266 BL1288 |
LH2422 LH2423 LH2434 LH2444 LH2446 LH2466 LH2488 |
2x2 2x3 3x4 4x4 4x6 6x6 8x8 |
1-1/2” |
38.10 |
36.20 |
12.74 |
5.6 |
12.71 |
29.62 35.43 47.07 52.88 64.52 76.15 99.42 |
20500 20500 30750 41000 41000 61500 82000 |
4.83 6.54 9.10 10.39 12.01 14.58 18.77 |
|
BL1422 BL1423 BL1434 BL1444 BL1446 BL1466 BL1488 |
LH2822 LH2823 LH2834 LH2844 LH2846 LH2866 LH2888 |
2x2 2x3 3x4 4x4 4x6 6x6 8x8 |
1-3/4” |
44.45 |
42.24 |
14.31 |
6.4 |
14.29 |
33.55 40.16 53.37 59.97 73.18 86.39 112.81 |
25000 25000 39000 50000 50000 75000 100000 |
7.20 9.05 12.60 14.41 17.98 21.52 28.59 |
|
BL1622 BL1623 BL1634 BL1644 BL1646 BL1666 BL1688 |
LH3222 LH3223 LH3234 LH3244 LH3246 LH3266 LH3288 |
2x2 2x3 3x4 4x4 4x6 6x6 8x8 |
2” |
50.80 |
48.26 |
17.49 |
7.2 |
17.46 |
39.01 46.58 61.72 69.29 84.43 99.57 129.86 |
35000 35000 55000 70000 70000 105000 140000 |
9.72 12.11 16.86 19.22 23.92 28.71 38.19 |
Any other enquiry than above spec. is welcomed.
